Engineering Drawing Symbols for Drawing Students according to BIS Rule 46-2003 all symbol used in all types technical drawing Sector Like – Engineering Diploma ITI etc. this Symbols also used for Engineering Graphics.

Rivet Joints Convection Symbols
Description | View in Drawing | 1st Angle | 3rd Angle |
---|---|---|---|

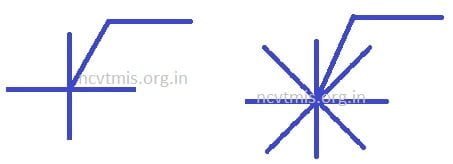

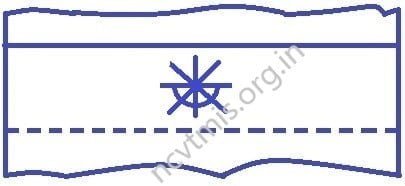

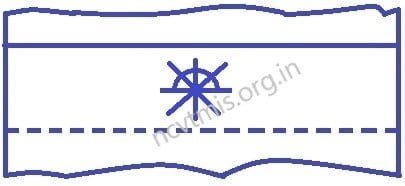

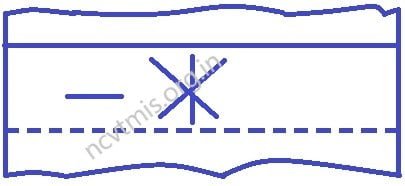

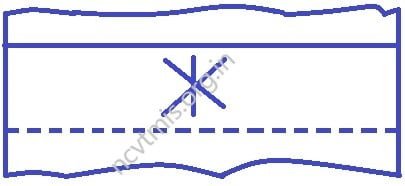

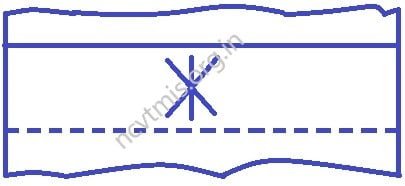

Rivet or Bolt to fit on site | ![]() | ![]() | ![]() |

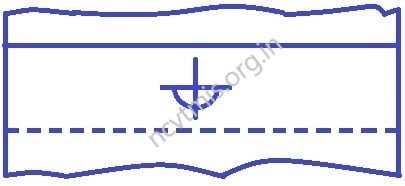

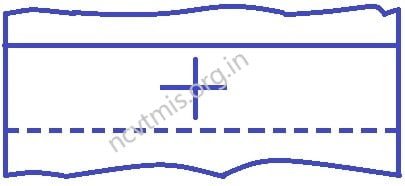

Rivet General | ![]() | ![]() | ![]() |
Rivet Countersunk on Back Side | ![]() | ![]() | ![]() |
Rivet Countersunk on Front Side | ![]() | ![]() | ![]() |
Rivet Countersunk on Back & Front Side | ![]() | ![]() | ![]() |

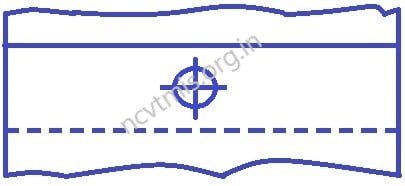

Bolt General | ![]() | ![]() | ![]() |
Bolt to Distinguish from the Rivet | ![]() | ![]() | ![]() |

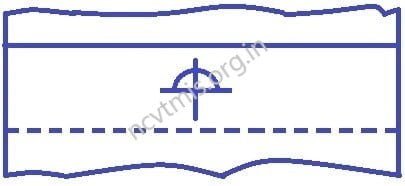

Bolt Place of Nut Indicated | ![]() | ![]() | ![]() |
Bolt Head countersunk inside on back side | ![]() | ![]() | ![]() |
Bolt Head countersunk inside on Front side | ![]() | ![]() | ![]() |
Convention brake Line Symbol
The rods, shafts, channels, tubes and pipes of different sizes of the same cross-section have been shown to be shortened so that objects of greater length can be easily explained in a small space for the full length.
Object | Convection |
---|---|

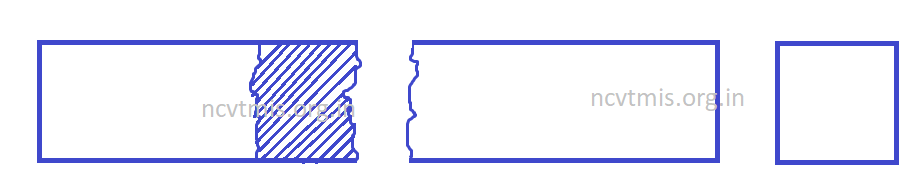

Rectangular Section | ![]() |

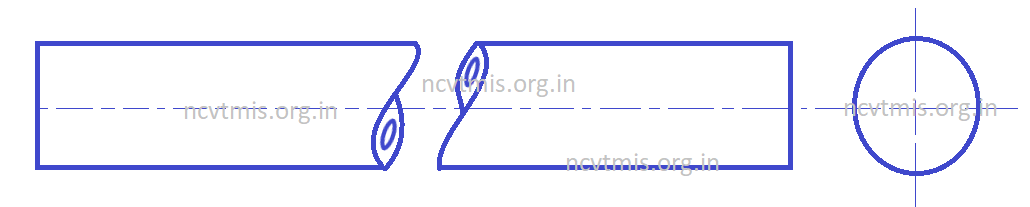

Round Section | ![]() |

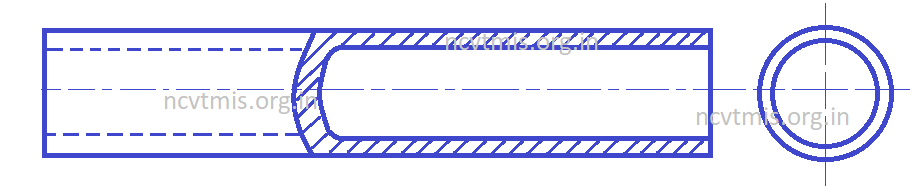

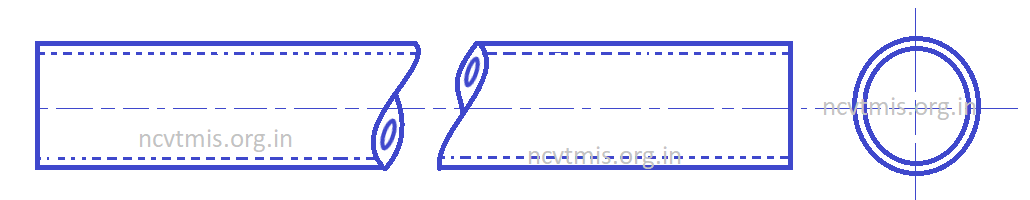

Pipe or Tubing | ![]() |
Pipe or Tubing | ![]() |

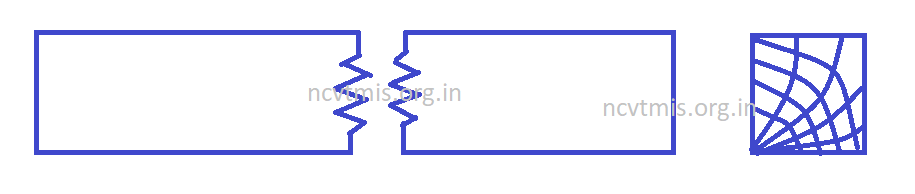

Wood Rectangle Section | ![]() |

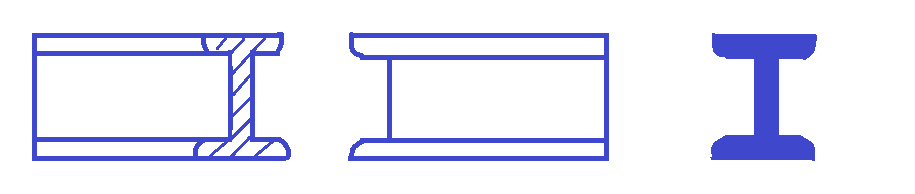

Rolled Section | ![]() |

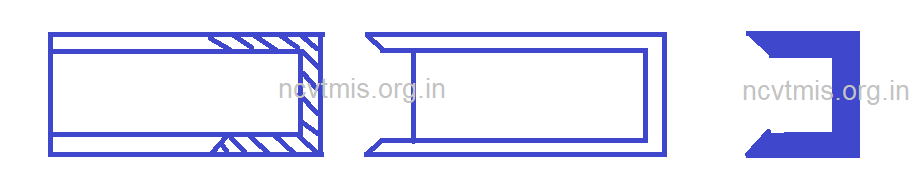

Channel Section | ![]() |
Convection of Material Symbol
Materials Name | Convention or Symbol |
---|---|

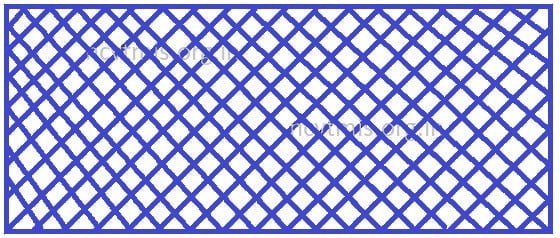

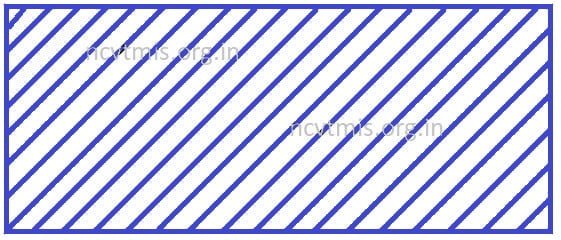

Steel Cast Iron Copper and its alloys Aluminium and its alloys | ![]() |
Lead Zinc Tin White Metal | ![]() |

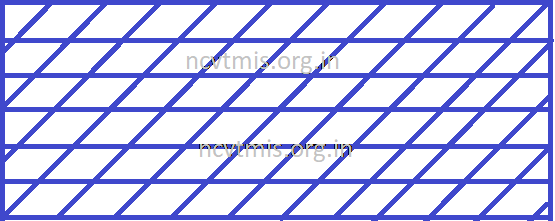

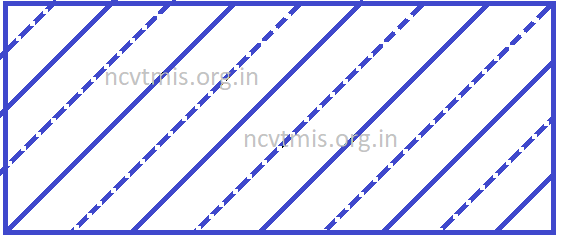

Brass Bronze Gun Metal | ![]() |

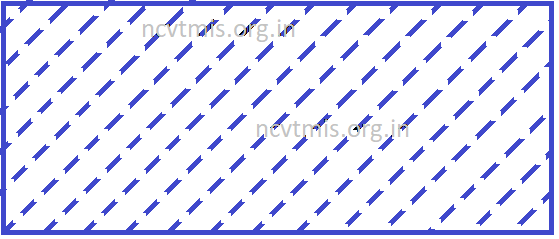

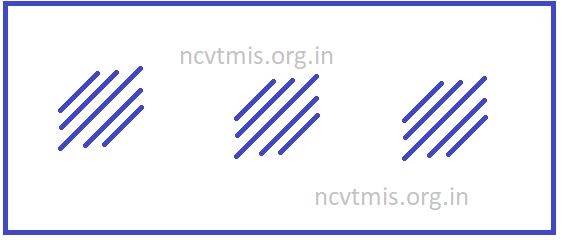

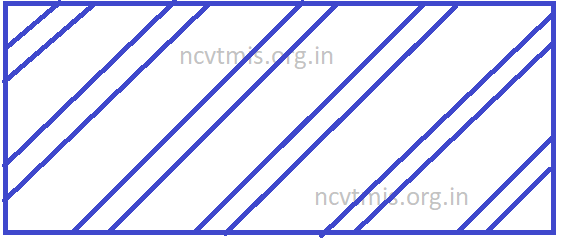

Glass | ![]() |
Porcelain Stone Ware Marble Slate | ![]() |
Asbestos Fiber Felt Synthetic Resin Product Paper Cork Linoleum Rubber Leather Wax Insulating and Filling Material | ![]() |

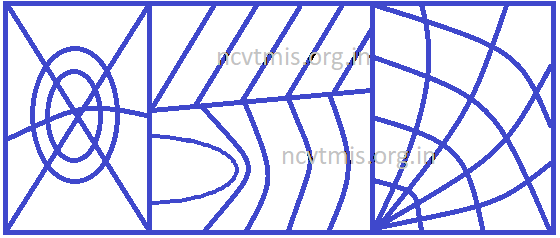

Wood Plywood | ![]() |
Earth | ![]() |

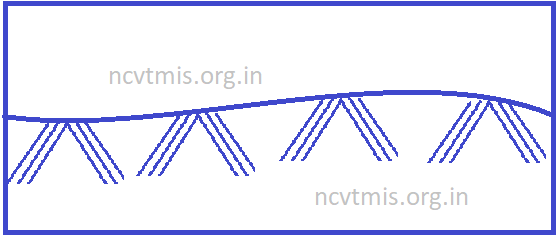

Brick Work Masonry Fire Bricks | ![]() |

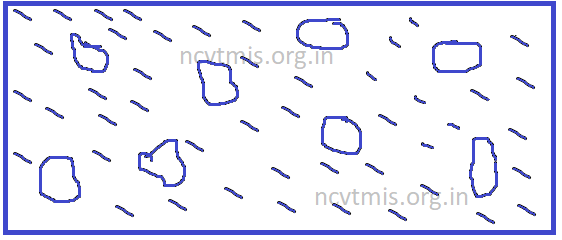

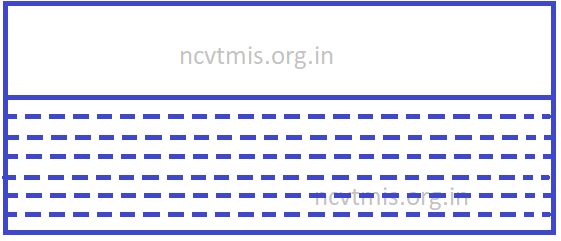

Concrete | ![]() |
Water Oil Petrol Kerosene | ![]() |
